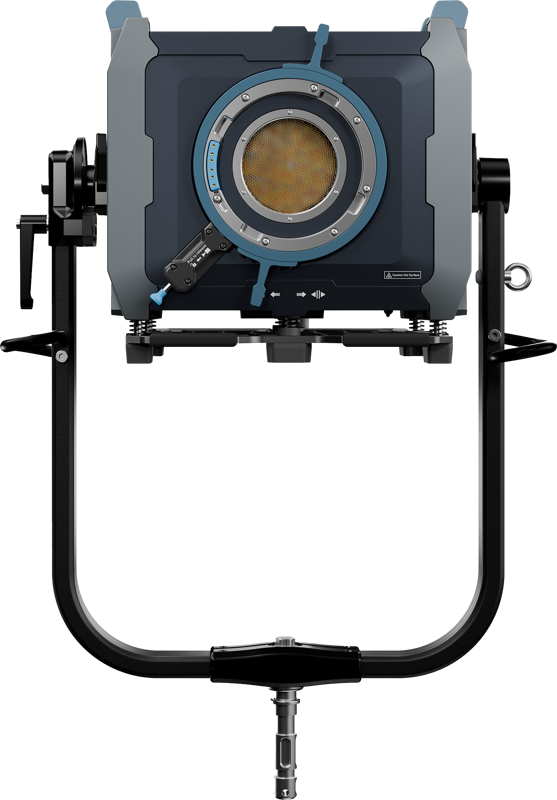

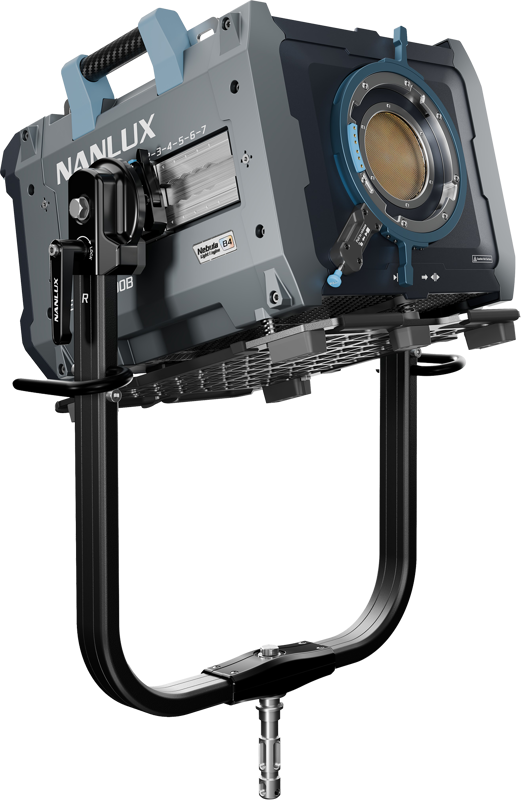

Nanlux Evoke 5000B – The Future of High-Power LED Lighting
Introducing the Nanlux Evoke 5000B, the world’s first 5000W stormproof LED bi-color spotlight with Green/Magenta adjustment. Built for the most demanding film and television productions, the Evoke 5000B delivers unmatched power, precision, and weather resistance. Designed to replace traditional high-output fixtures, it redefines professional lighting with its exceptional intensity, fine-tuned color control, and rugged all-in-one design.

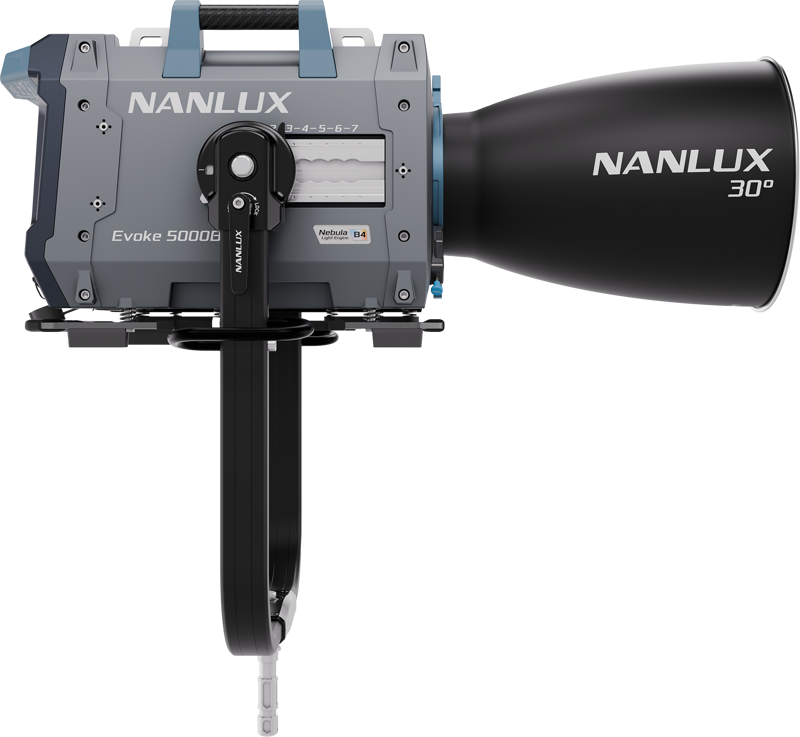

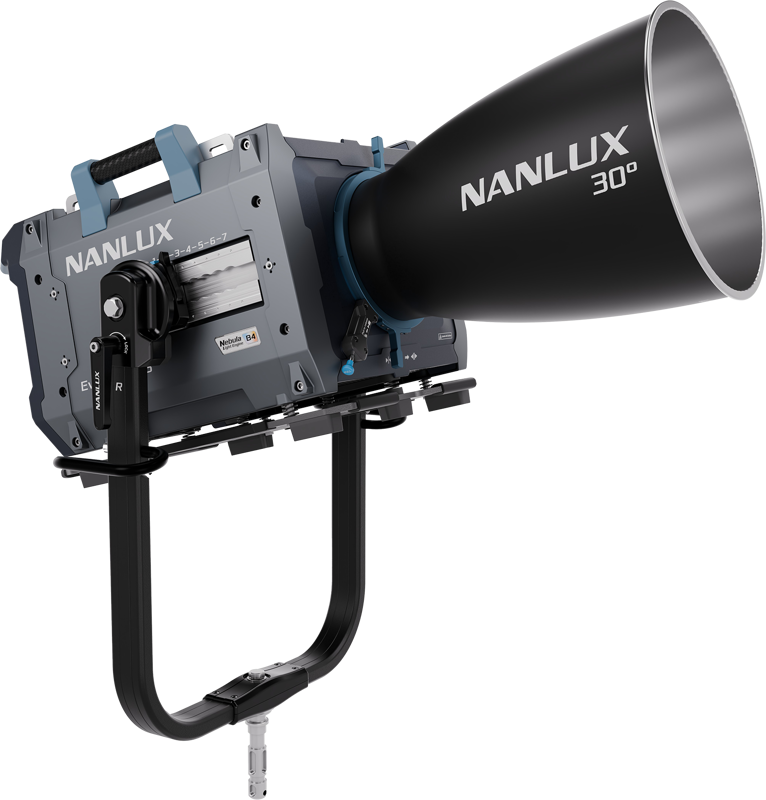

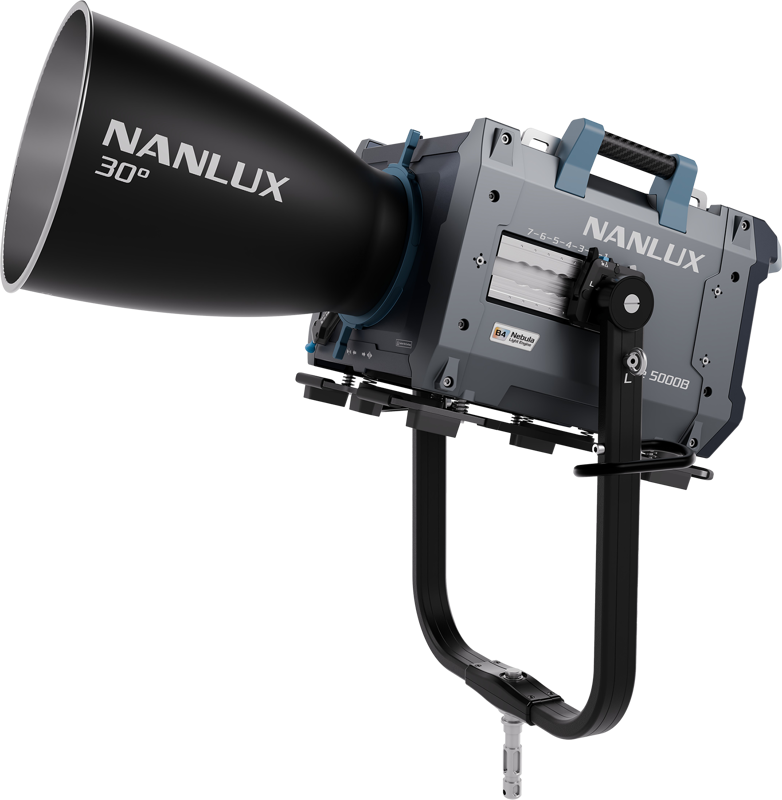

Upgraded Output with New Reflector
To meet the growing demand for higher intensity in large-scale setups, we’ve developed a new 30° reflector (RF-NL-L-30) that offers a significant performance boost. Compared to the previous 30° design, the new reflector delivers 26% more brightness, and an impressive 137% increase in brightness compared to earlier configurations, making it ideal for high-output applications where every lumen counts.
Unrivaled Power and Color Accuracy

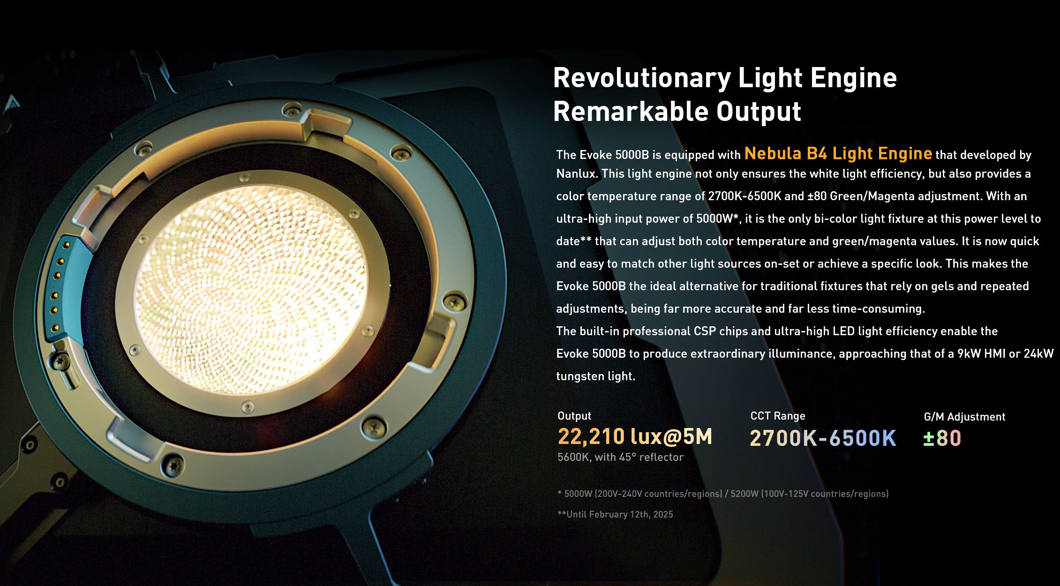

Powered by the Nebula B4 Light Engine, the Evoke 5000B offers a wide color temperature range of 2700K–6500K with ±80 Green/Magenta adjustment. This flexibility ensures perfect color balance across mixed lighting environments and is indispensable for cinematographers aiming for absolute consistency. With a 5000W output, the Evoke 5000B rivals traditional 9kW HMI or 24kW tungsten sources, enabling effortless daylight simulation or powerful key lighting with industry-leading efficiency.

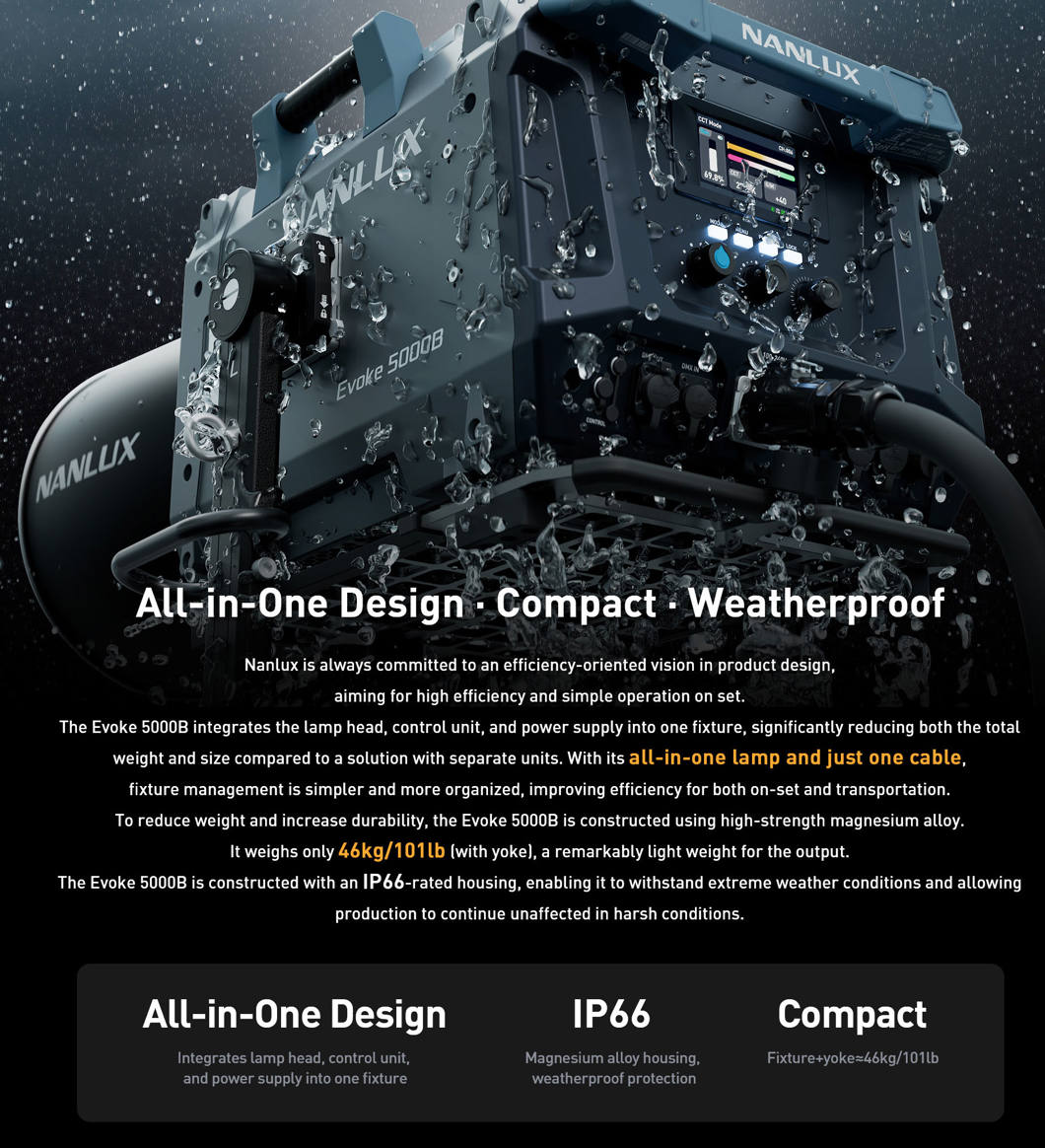

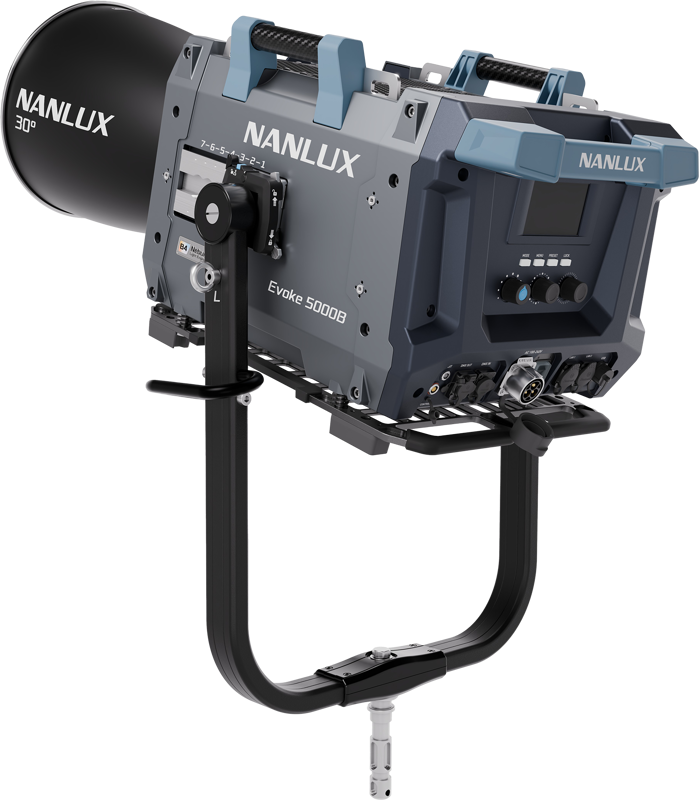

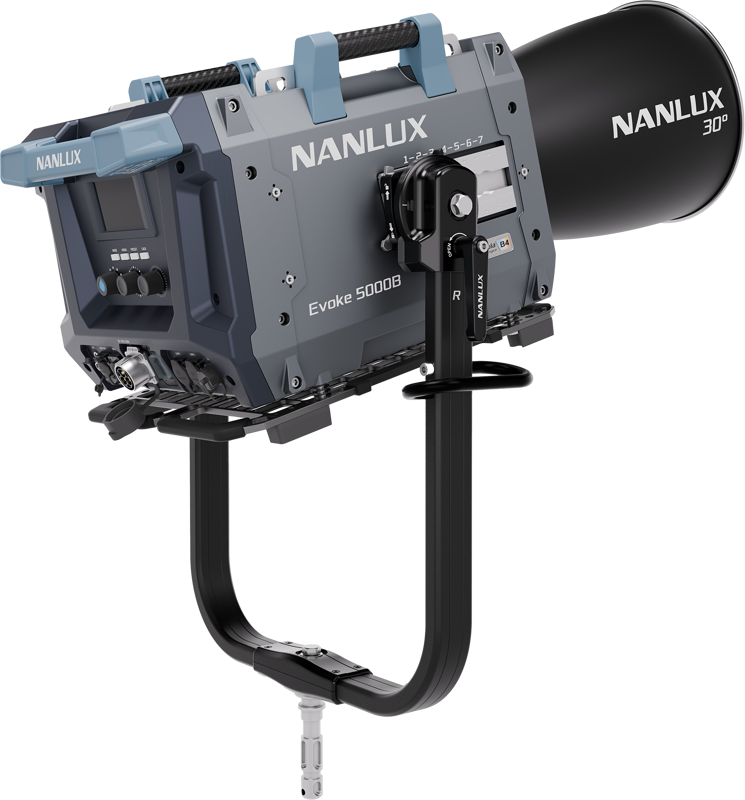

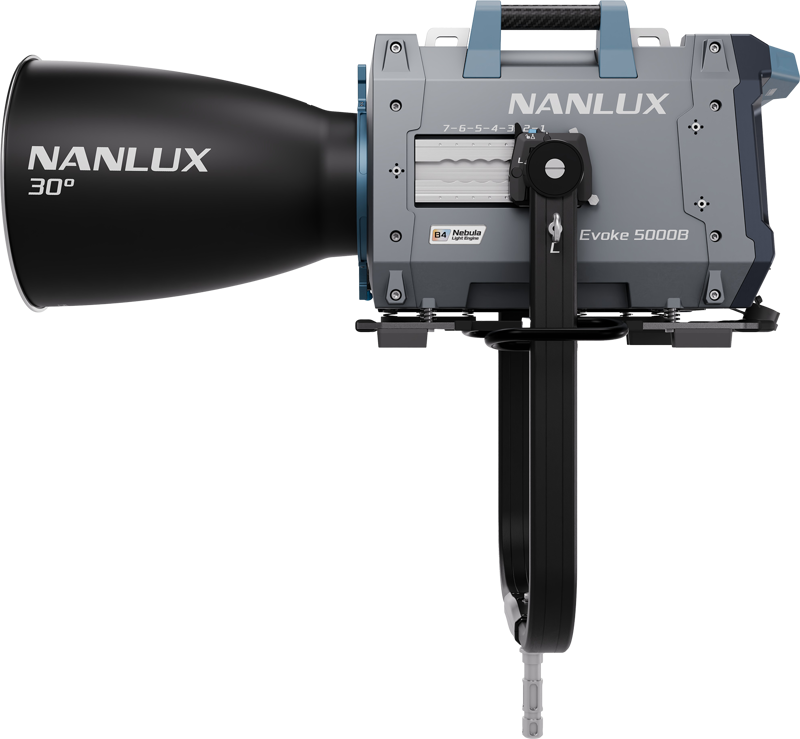

Streamlined, Stormproof Design
Weighing only 46kg with the yoke, the Evoke 5000B combines lamp head, control unit, and power supply in one durable magnesium alloy housing. Its IP66-rated build withstands rain, dust, and extreme humidity, offering peace of mind during outdoor or on-location shoots. From harsh weather to tight schedules, this light is built to perform—anywhere.

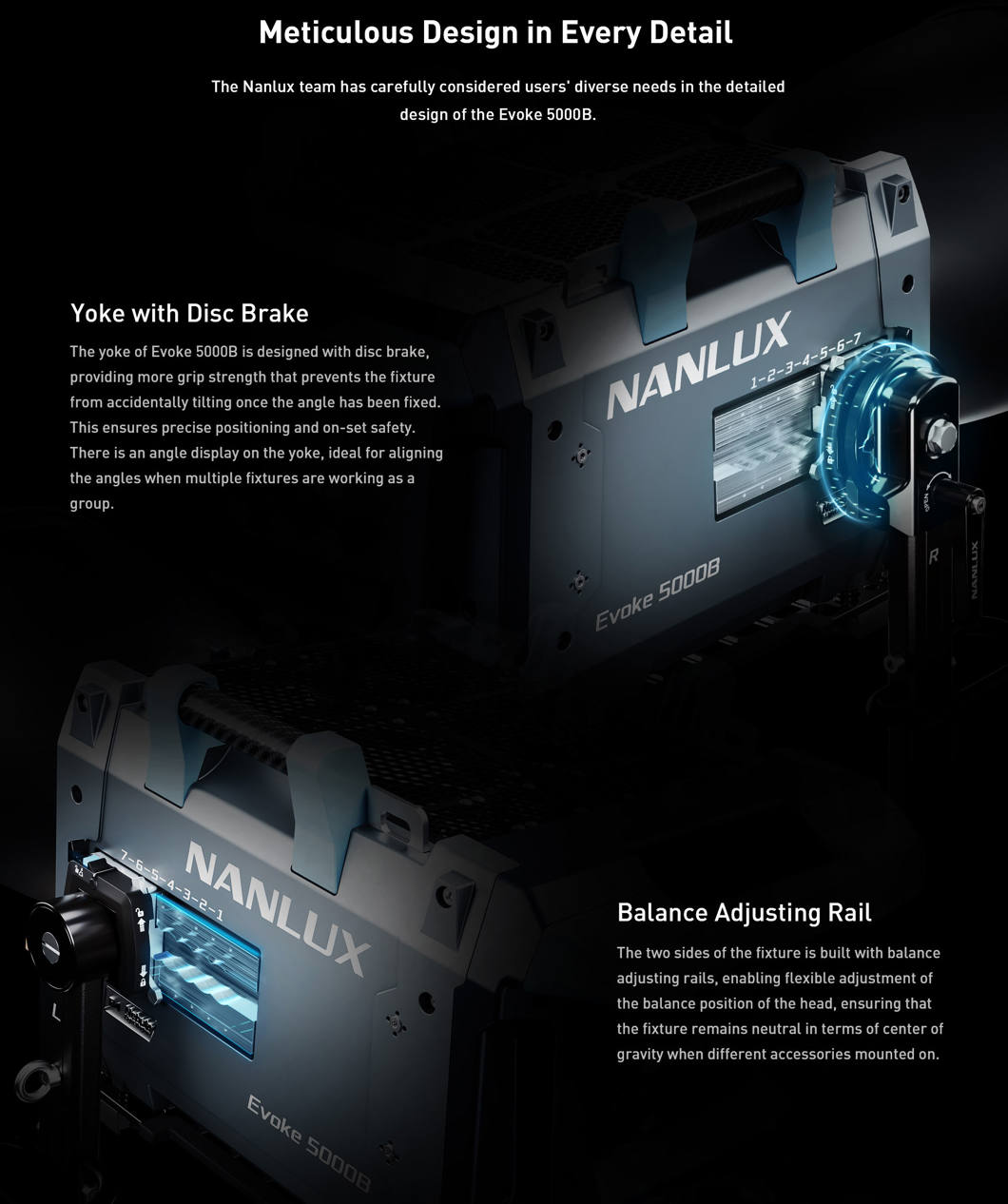

Cinematic Control & Precision
The Evoke 5000B features cutting-edge design elements to ensure ease of use and stability on set:
Balance Adjusting Rail for optimal center of gravity when using modifiers
Yoke with Disc Brake for secure tilt positioning

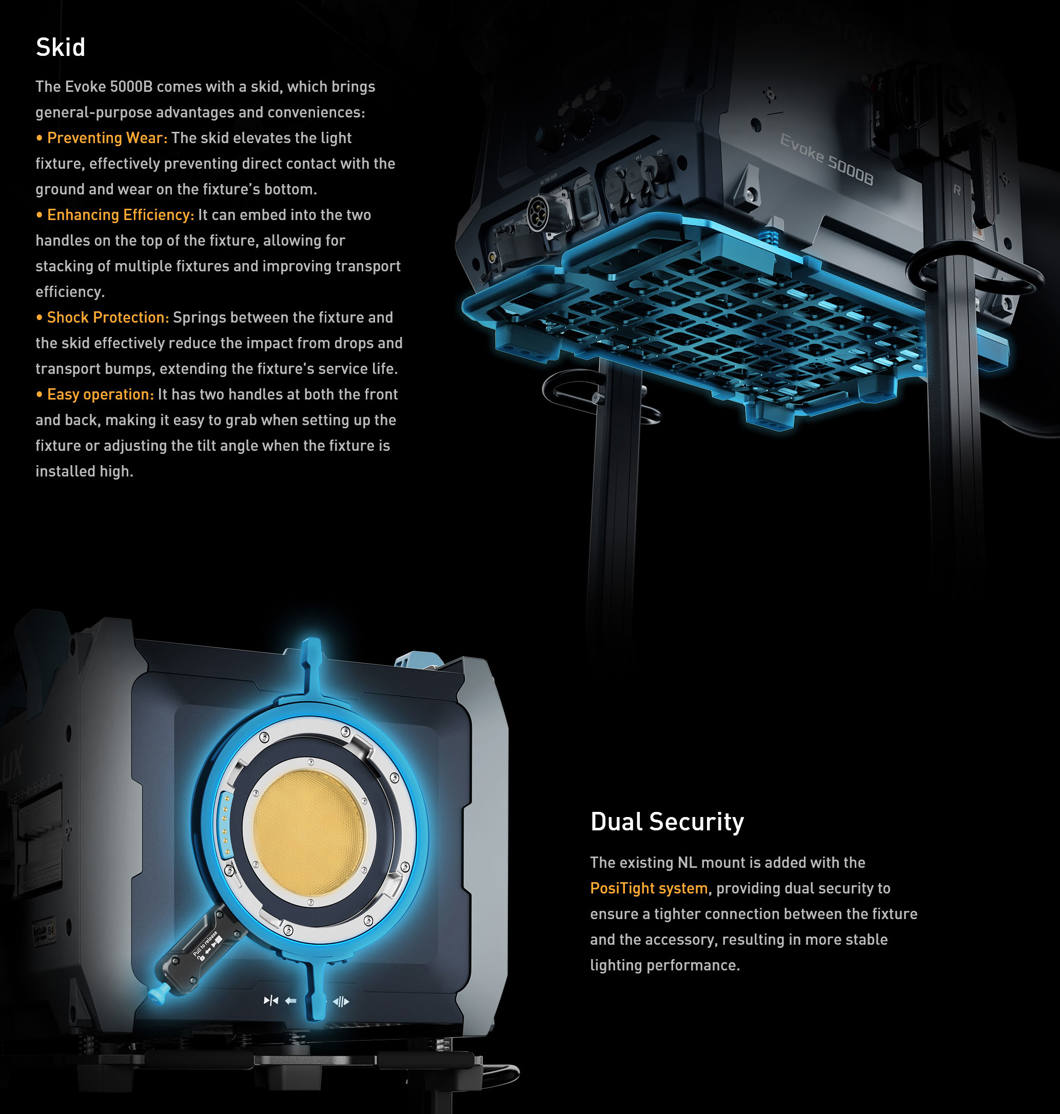

Skid System for better mobility and shock protection
Dual Security NL Mount with PosiTight System for rock-solid accessory mounting

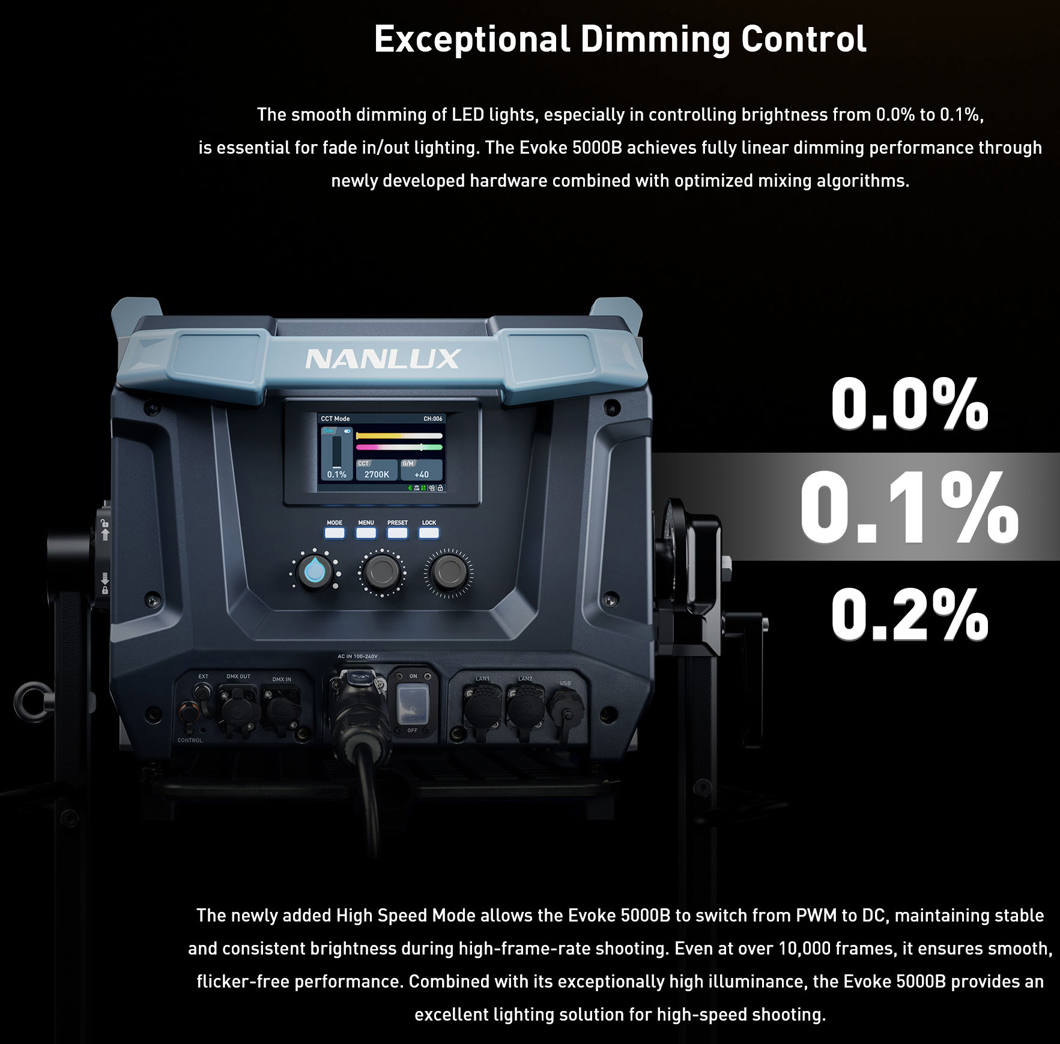

Flicker-Free Dimming & High-Speed Compatibility
Enjoy flicker-free performance even at frame rates over 10,000fps. The Evoke 5000B dims smoothly from 0.0% to 0.1% with no color shift, delivering flawless fade transitions for cinematic control.

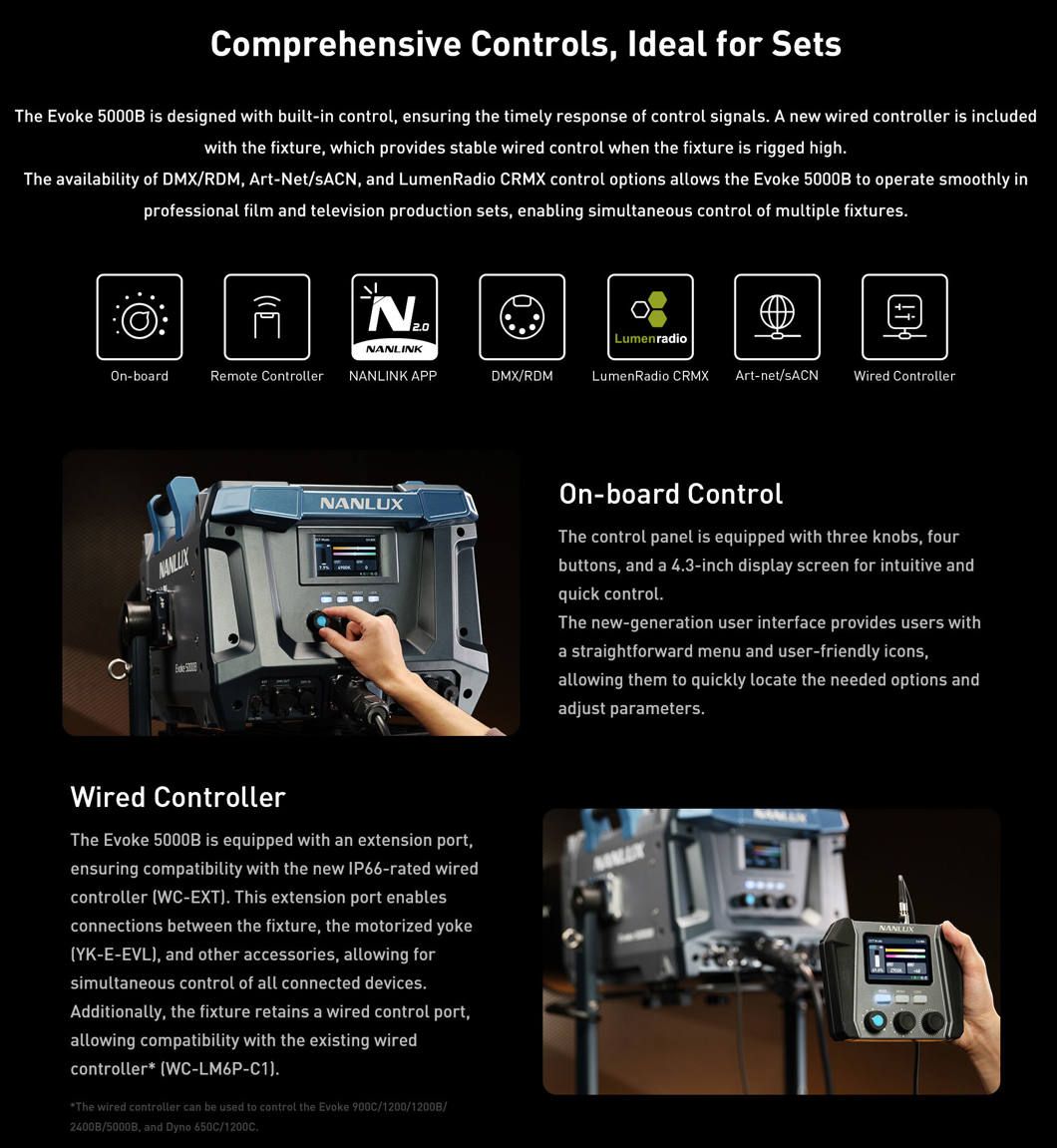

Versatile Control & Connectivity
Whether on a film set or a broadcast stage, the Evoke 5000B offers intuitive, robust control:

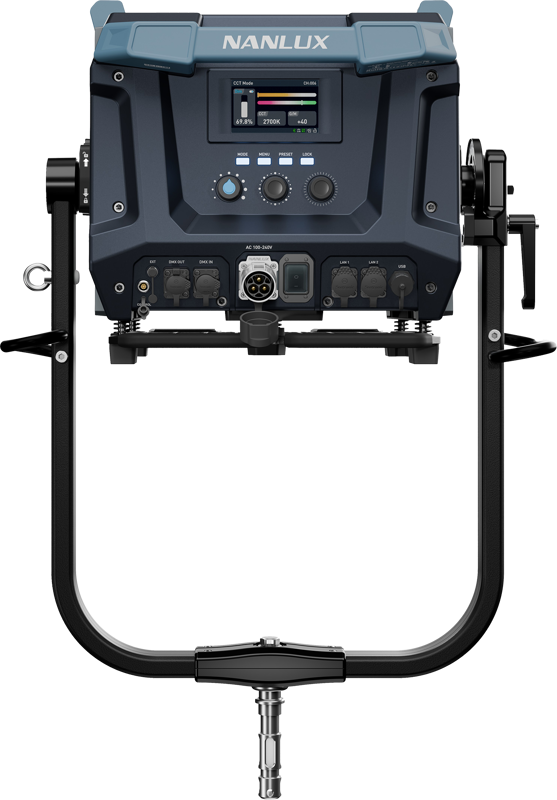

4.3” Onboard Screen with clean UI

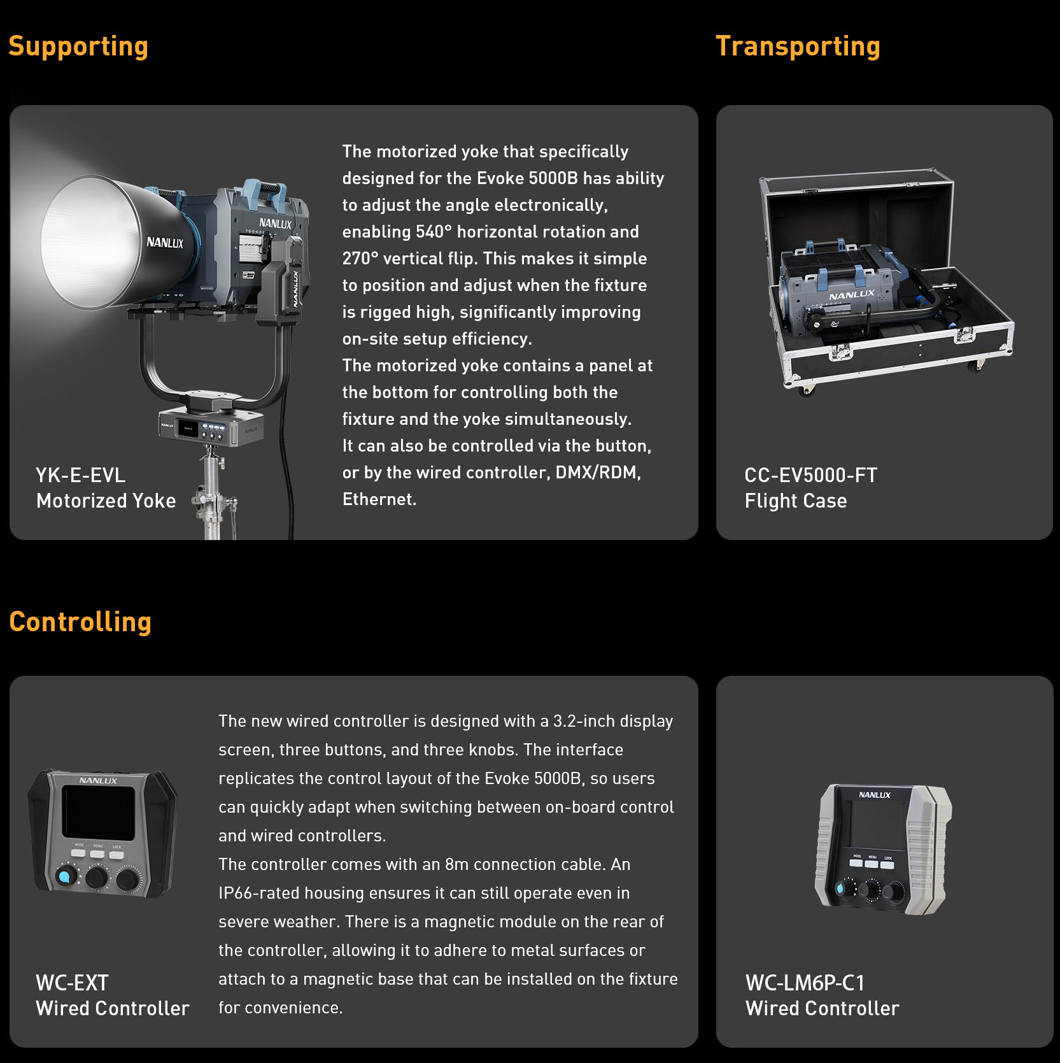

Wired Controller (WC-EXT) with 8m cable and magnetic base
DMX/RDM & Art-Net/sACN via 5-pin XLR and LAN
LumenRadio CRMX for wireless DMX
Nanlink App 2.0 for Bluetooth control
Optional 2.4G Remote Controller

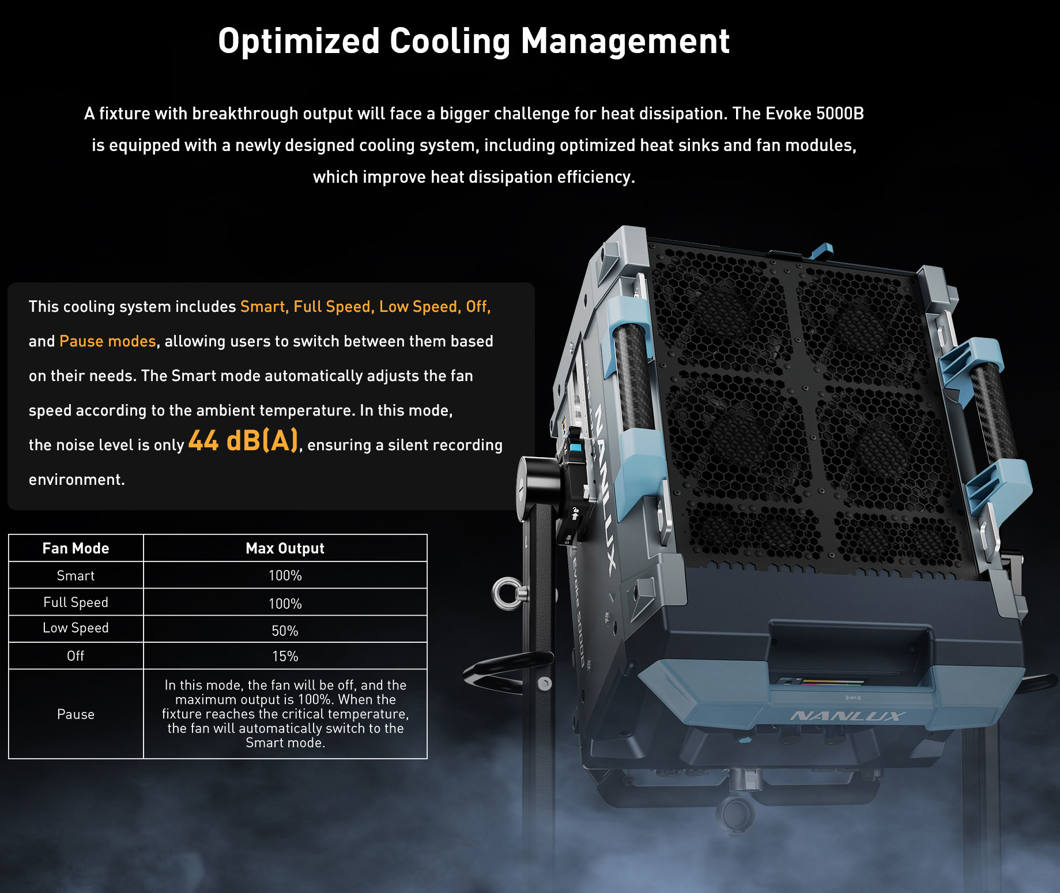

Smart Cooling for Silent Operation
An advanced fan system offers five cooling modes, including Smart, Full Speed, Low Speed, Off, and Pause. Smart Mode dynamically adjusts fan speed for optimal heat management while keeping noise as low as 44dB(A)—perfect for audio-sensitive environments.

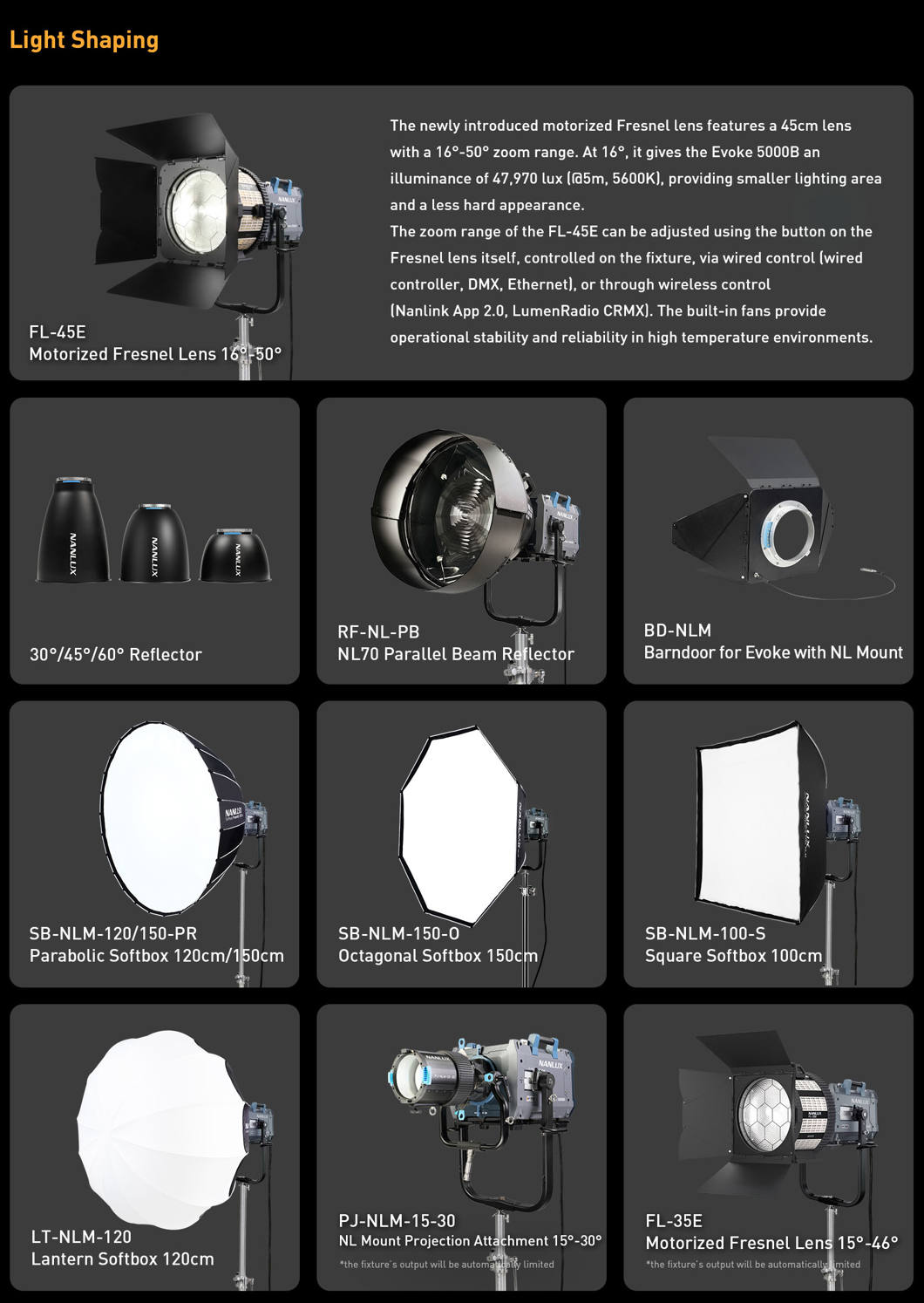

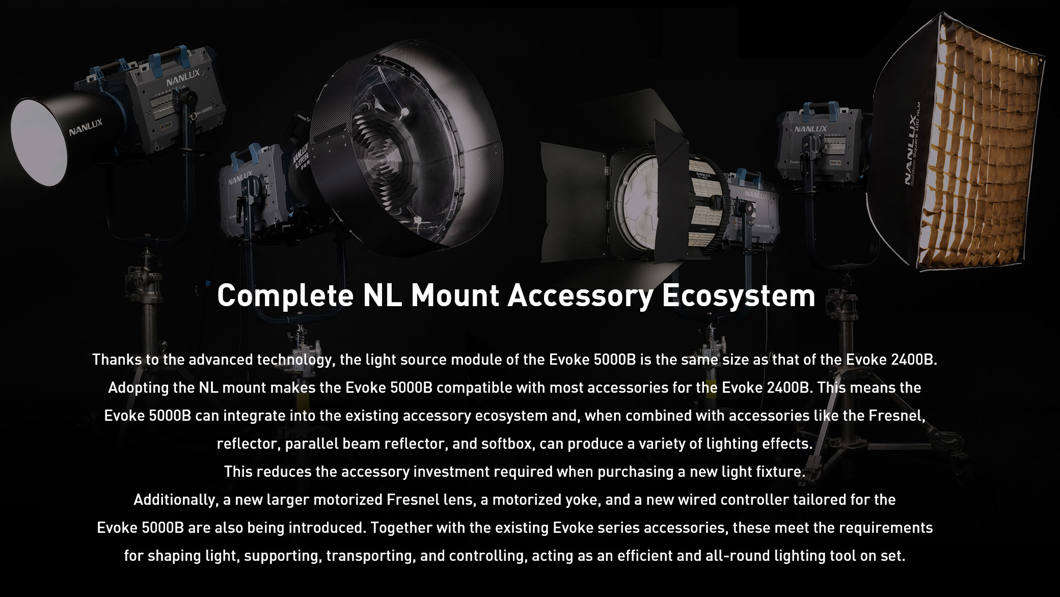

Modular Accessory Ecosystem
Using the NL mount system, the Evoke 5000B is compatible with an array of existing Evoke accessories, including the new high-output 30° reflector, Fresnels, softboxes, and more—making it easier than ever to build a flexible, professional lighting kit without starting from scratch.

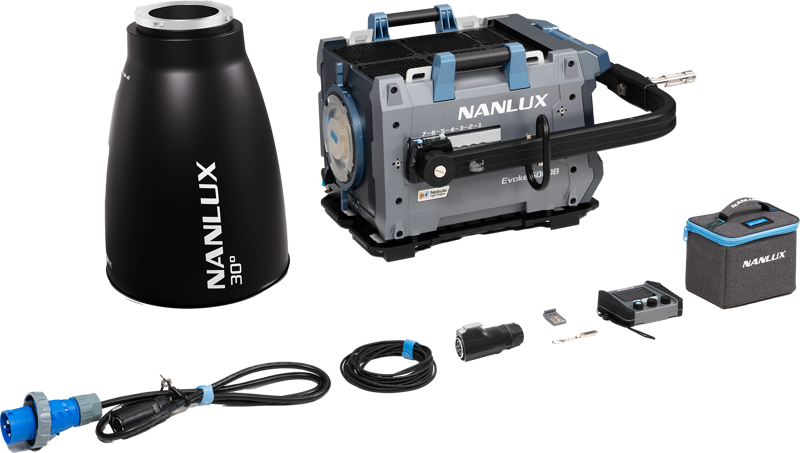

What’s Included (200V–240V regions)
Evoke 5000B Fixture × 1
Yoke × 1
AC Cable (2m) × 1
RF-NL-L-30 Reflector (30°) × 1
USB Flash Drive × 1
WC-EXT Wired Controller (8m Cable & Magnetic Base) × 1
User Manuals × 2
